Notes
1.The carburetor must be cleaned after every 100 hours of operation. The air filter sponge must be cleaned after 36 hours of operation.

2.Before use, please carefully read the English manual and follow the precautions.

3.If not used for a long time, the fuel and oil must be cleaned out of the tank and packed in a plastic bag to avoid dust and moisture entering the machine and affecting its use.

4.Pay attention to whether the oil inlet pipe is full of oil before use.

5.After starting up, you need to empty the throttle and let the machine start for a while before starting work.
6.When starting the product, please pull the starter quickly and continuously without stopping, and do not pull too hard.

7.Please note that this product cannot be used for piling in water.

8.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

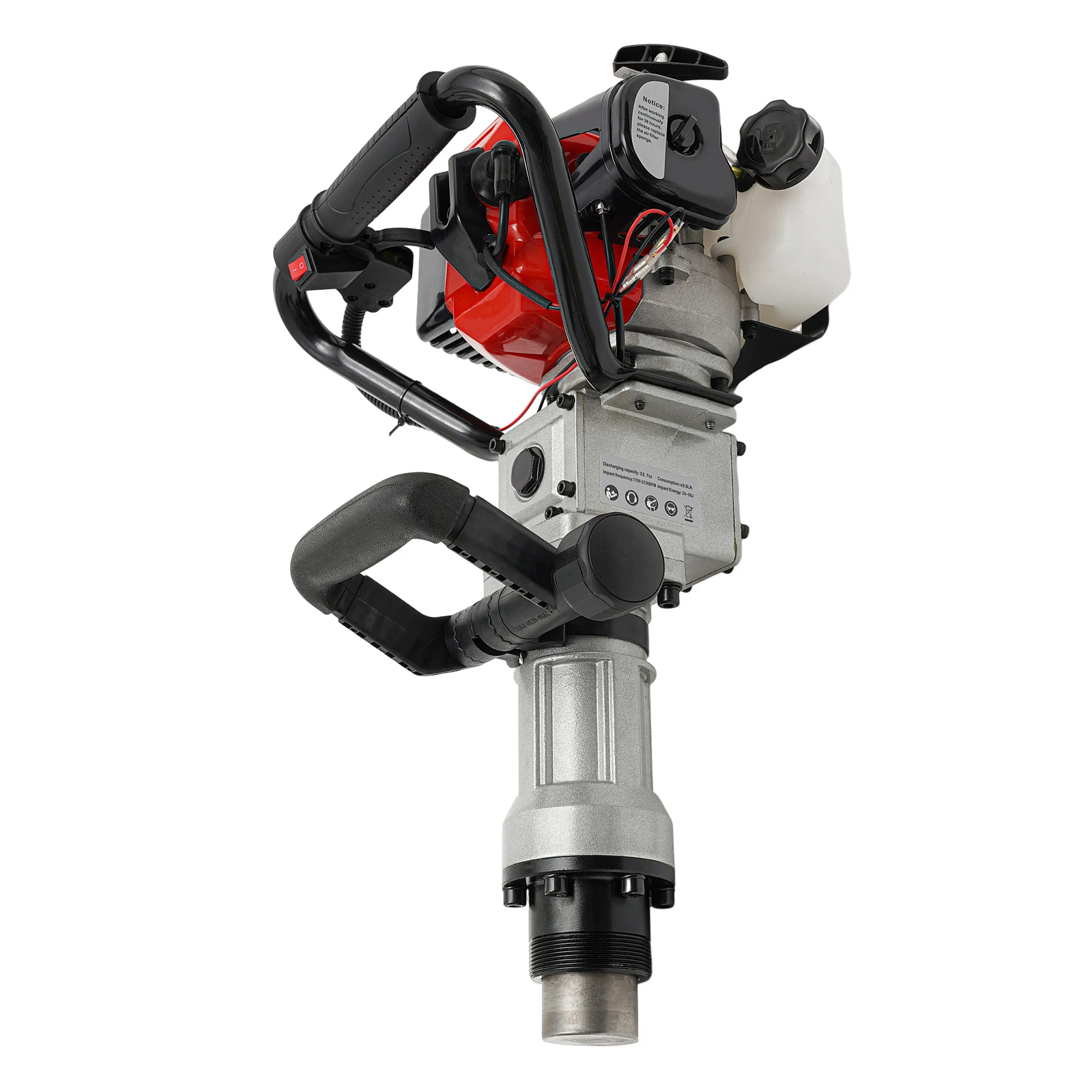

Specifications
Model: Jh-55
Material: ABS, Iron, Aluminum, Alloy Steel
Color: Red, Black
Power Source: Gasoline Powered
Starter System: Hand Pull Start

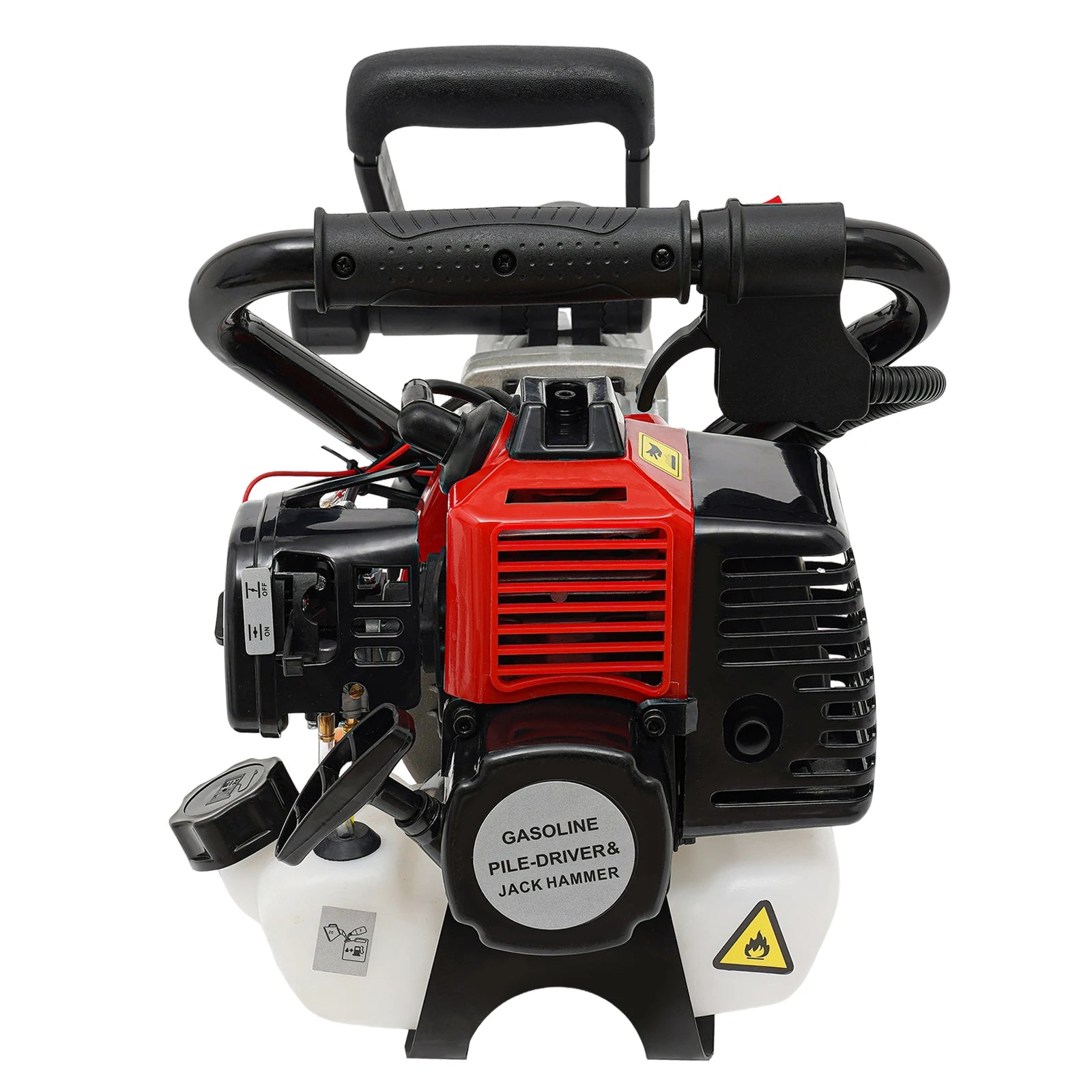

Engine Type: Single Cylinder, Air Cooling, 2-Stroke
Impact Frequency: 1700-2230BPM
Impact Energy: 25-50J
Fuel: Oil Mixture (Gasoline:2-Stoke Engine Oil=25:1)
Fuel Capacity: 0.9L/0.24gal
Fuel Consumotion Rate: ≤0.5L/h(0.13gal/h)
Displacement: 32.7cc
Max. Power and Speed: 1000W/7000r/min
Max. Torque and Speed: 1 .45N.m/5300r/min
Pile Head Size: φ55mm/2.16in(Small), φ70mm/27.56in(Big)

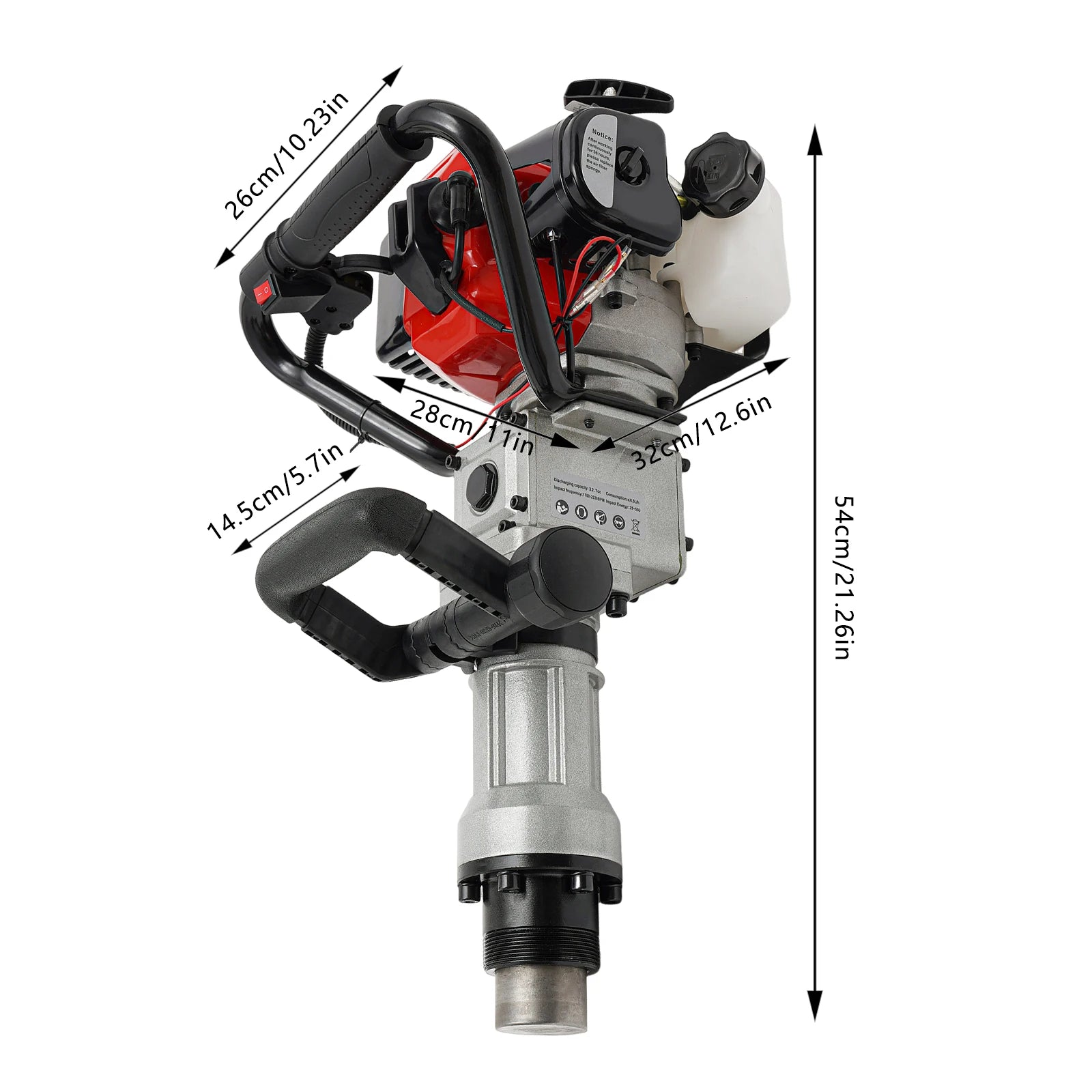

Product Size: 32*28*54cm/12.6*11*21.26in
Packing Size: 64.5*34*37cm/25.4*13.4*14.6in
Net Weight: 16kg/35.3lbs
Gross Weight: 17.5kg/38.6lbs

Details

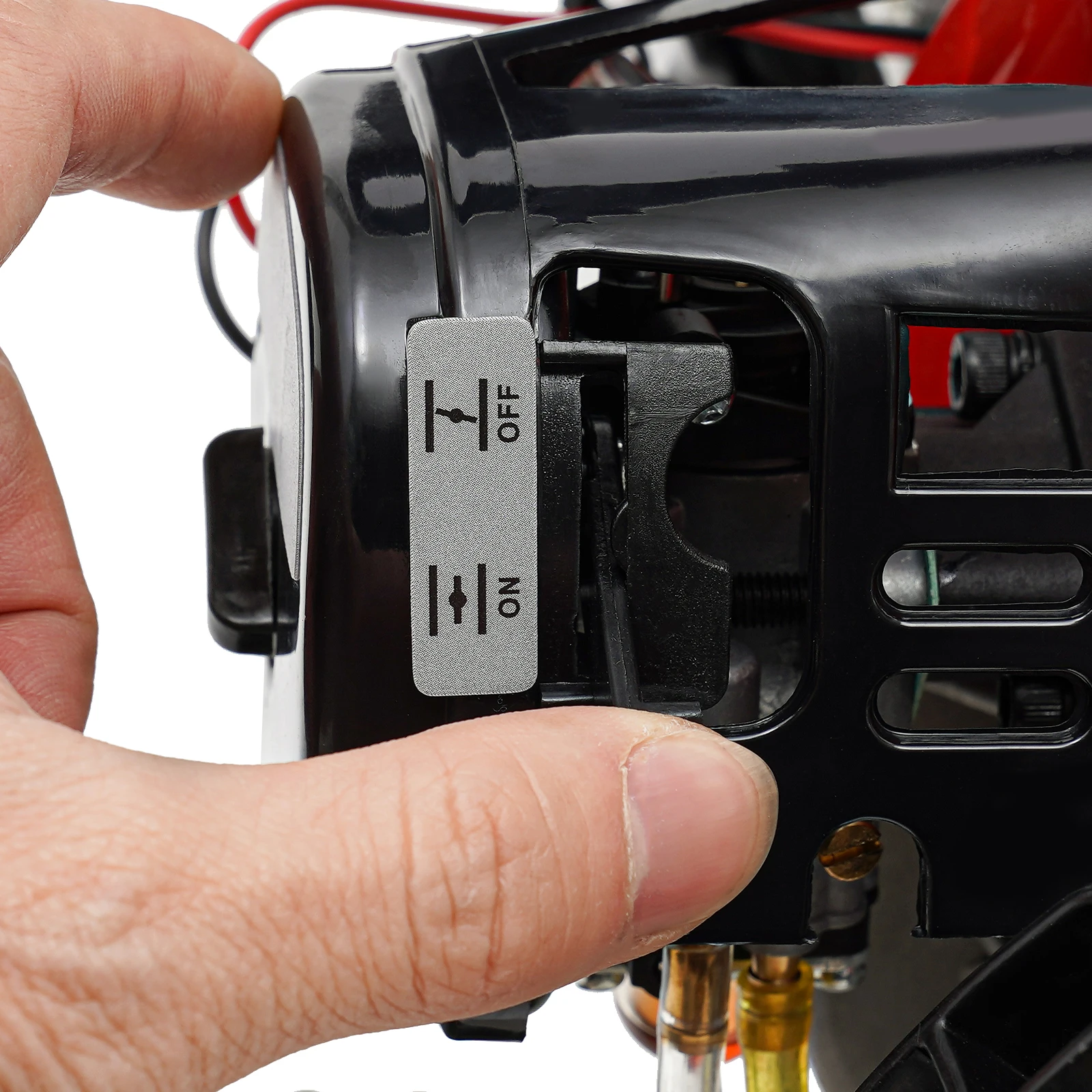

Safety Lock: It prevents unnecessary injuries caused by accidental switching on.

Proportioning Pot: It helps you to mix the right proportion of oil and petrol to keep your engine in good working condition.

Practical Air Filter: It can filter out impurities in time, avoid blocking and ensure smooth operation.

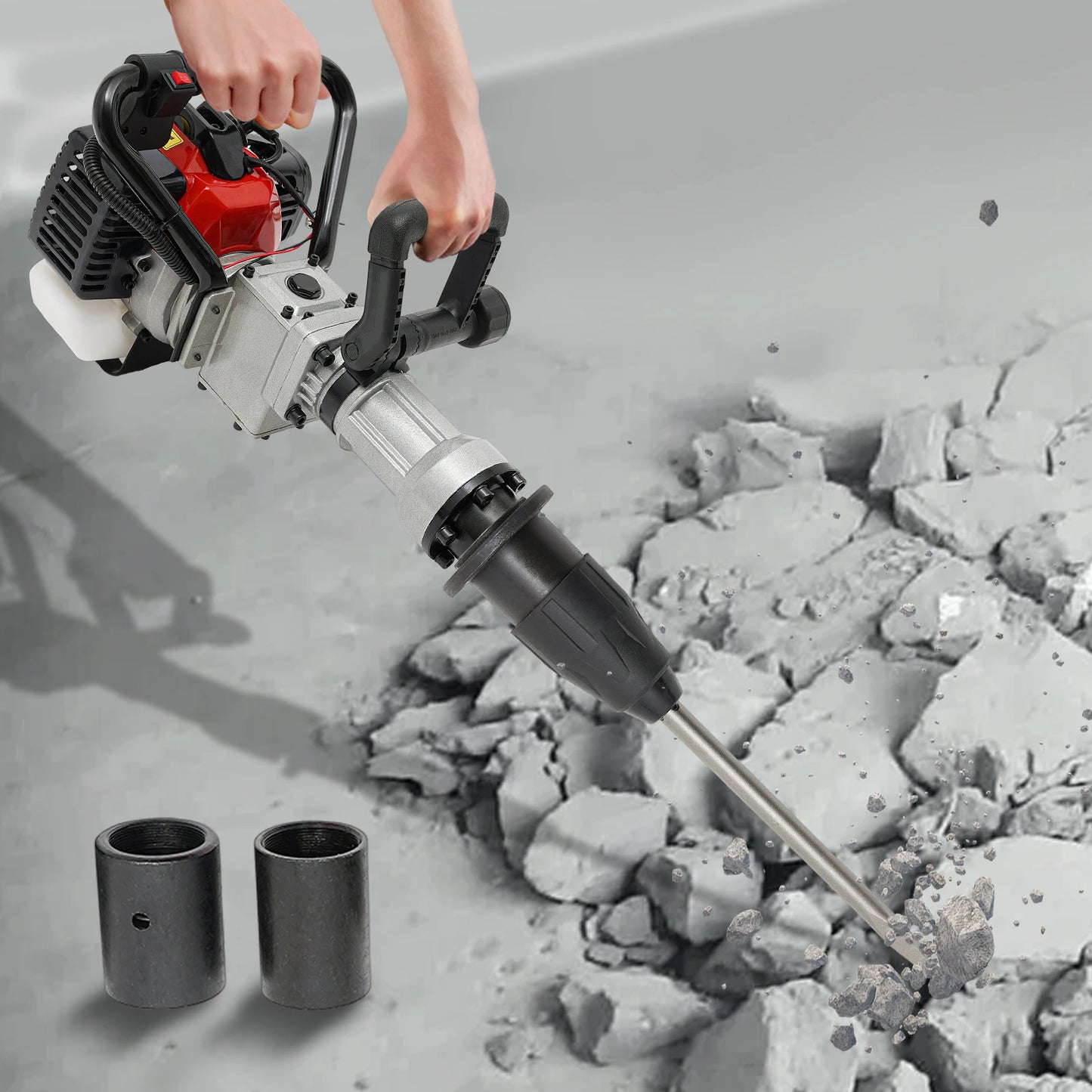

Two Sleeves: Two sleeves of different sizes allow wider application, and the threaded connection is also convenient for you to replace.

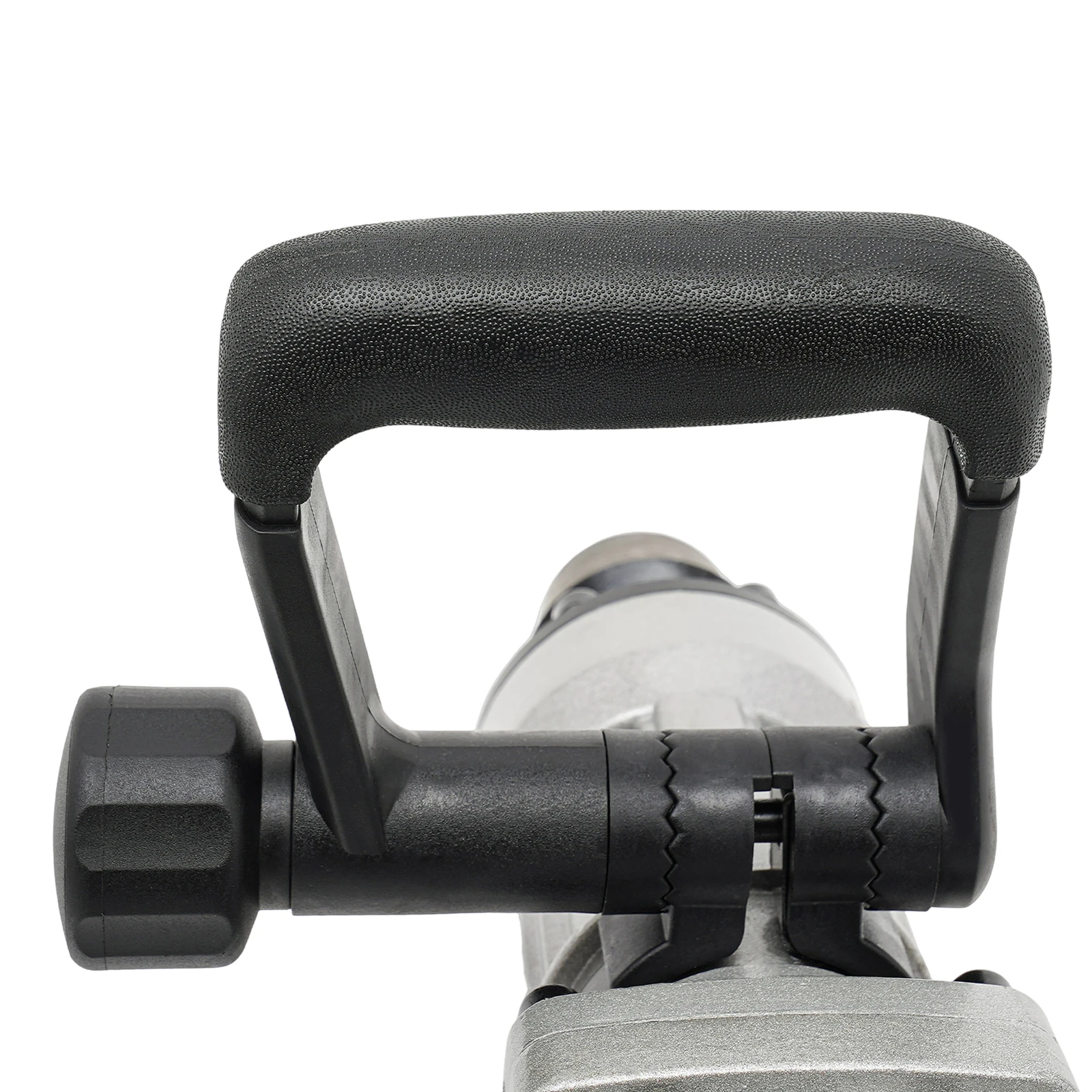

Ergonomic Handle: It is comfortable, anti-slip, and shock-absorbing, effectively reducing fatigue during work.

Flexible Throttle Switch: It allows you to freely control the speed of pile driving.

Application

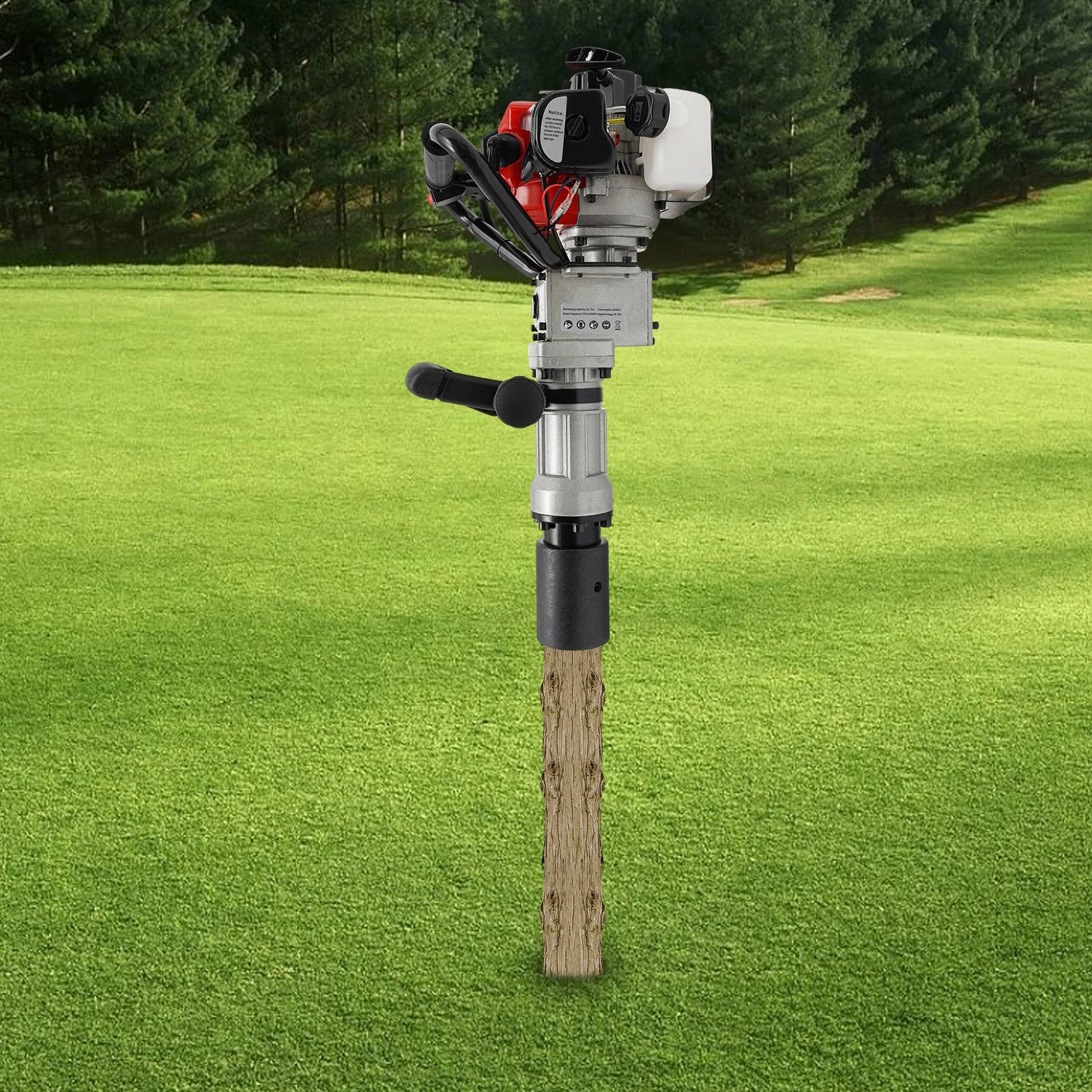

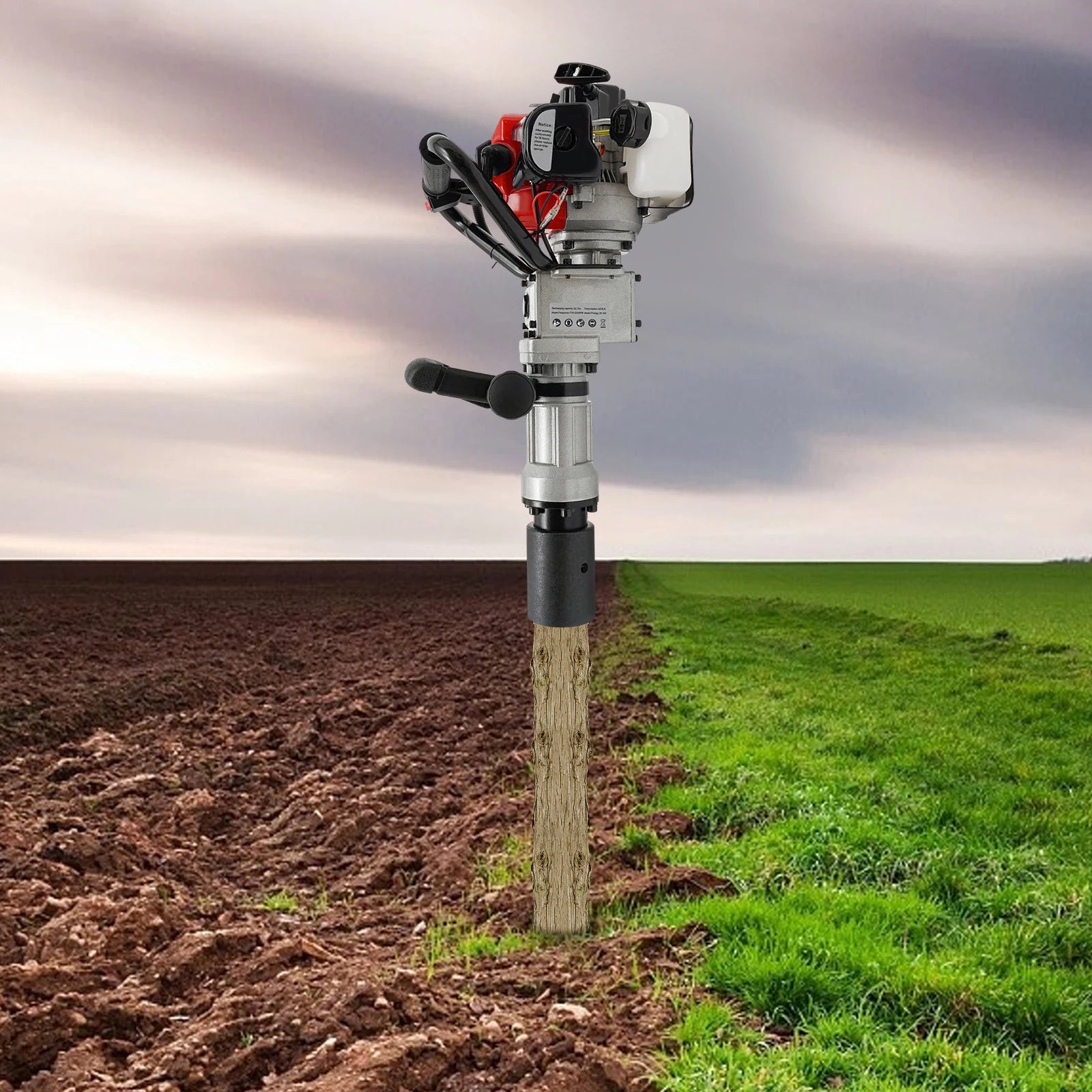

It is suitable for a range of piling projects in gardening, road fencing, agricultural fencing, orchard support, geophysical exploration, construction, vegetable planting, fence protection, etc.

Key Features
Build to Last: High-quality ABS, iron, alloy steel, and aluminum make this product solid, wear-resistant, impact-resistant, and rustproof, ensuring your long-term use without frequent replacement.

High Efficiency: With a maximum power of 1000W, a maximum speed of 7000r/min, an impact frequency of 1700-2230BPM, and an impact energy of 25-50J, the 32.7cc two-stroke engine provides powerful power, helping you efficiently carry out various pile driving tasks.

Good Heat Dissipation: Multiple cooling holes can dissipate heat in time, effectively preventing high temperatures from damaging internal components and extending the product's service life.

Elaborate Design: This cordless pile driver is powered by gasoline, which provides more convenience for you to use outdoors.

Well-designed Fuel Tank: 0.24gal fuel tank avoids frequent refueling, saving you time and effort. Its translucent design makes it easy for you to check the fuel usage at any time, bringing you greater convenience.

Save Money: The high-quality carburetor makes the mixed oil(25:1 gasoline: two-stroke engine oil) fully burn when working with the maximum fuel consumption of 0.13gal/h, saving you money.

Easy to Clean: It has a smooth surface and a simple structure, so you only need to wipe the dust or residue with a towel after use.

Protective Package: To prevent the product from being damaged during transportation, we packed it with foam to protect your products to the maximum extent possible.

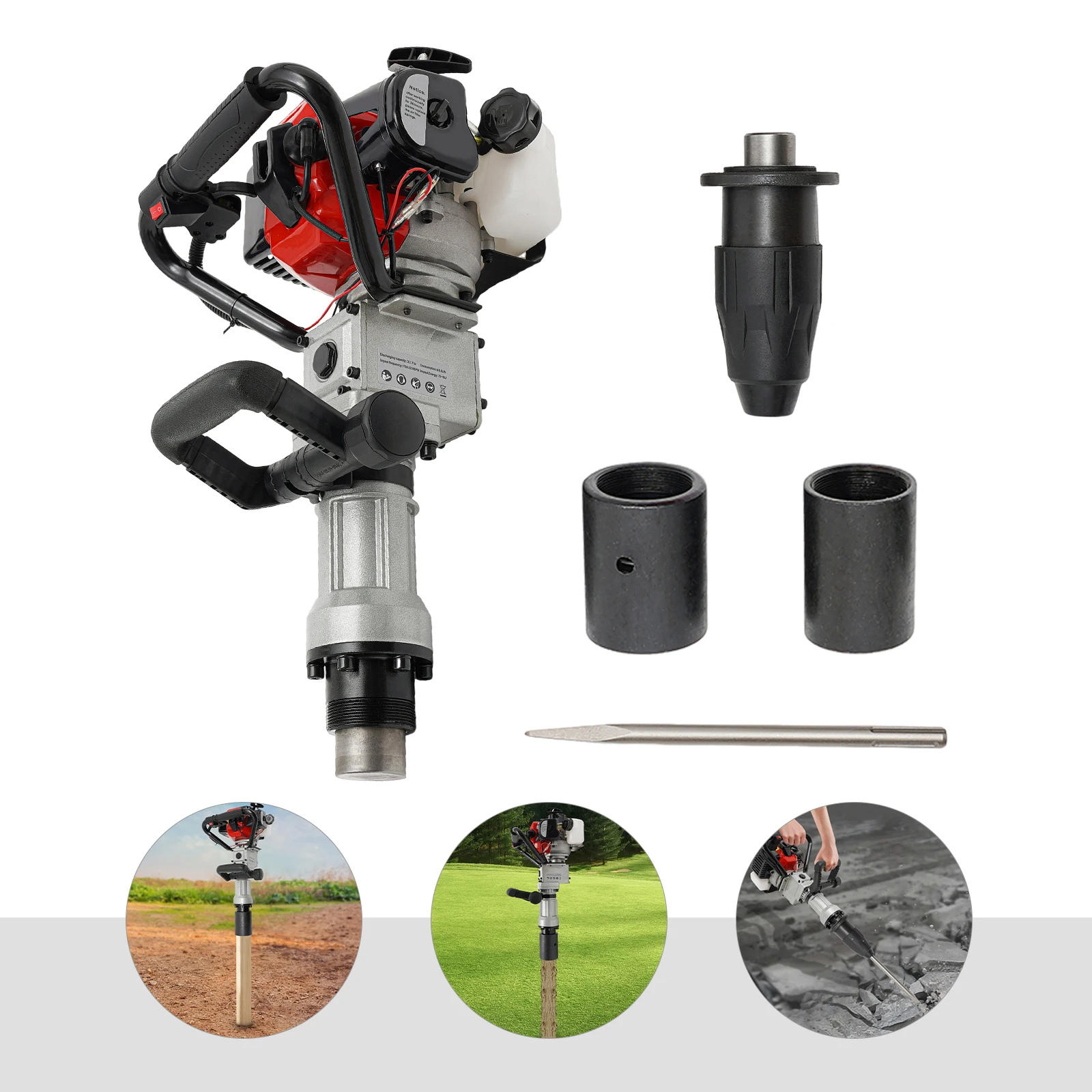

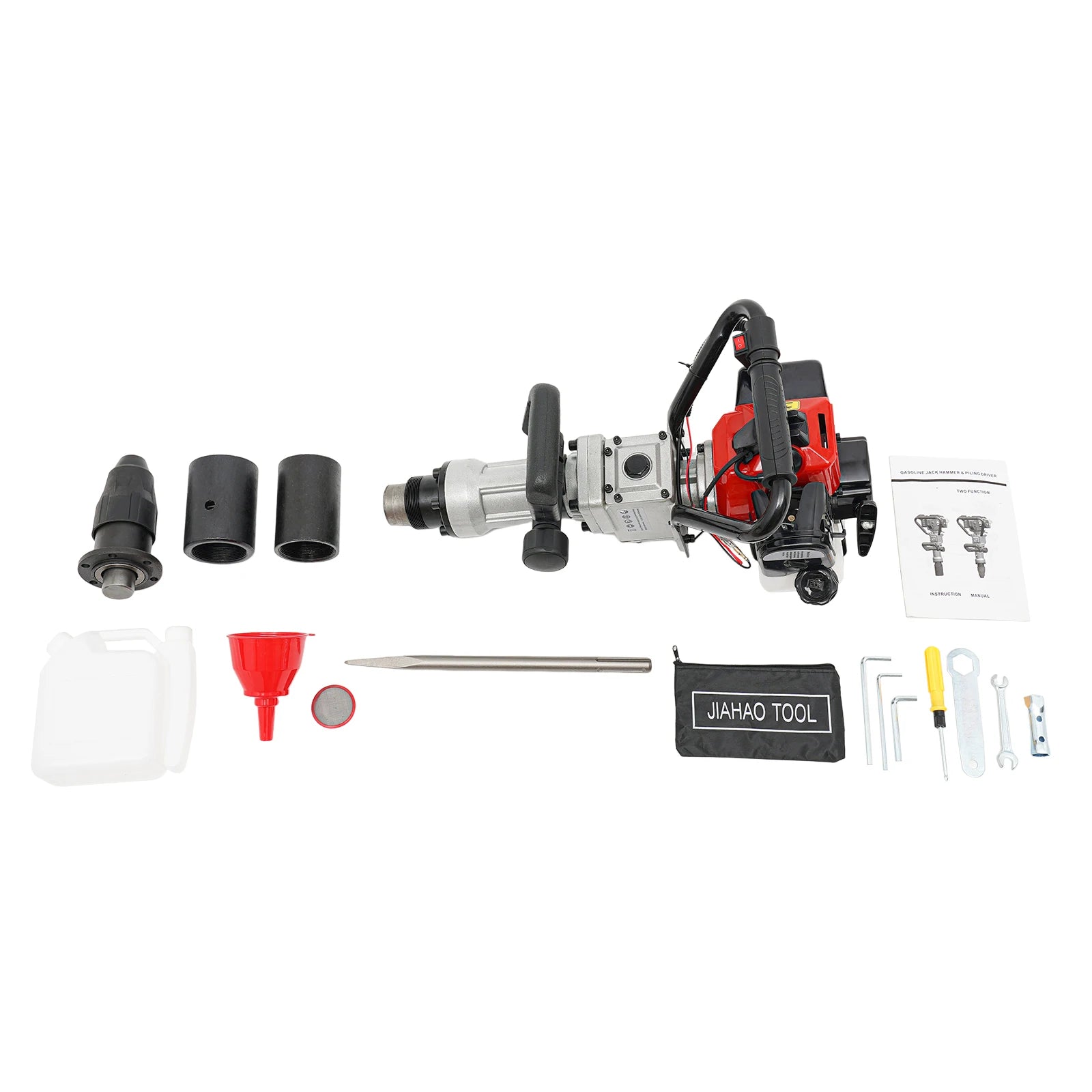

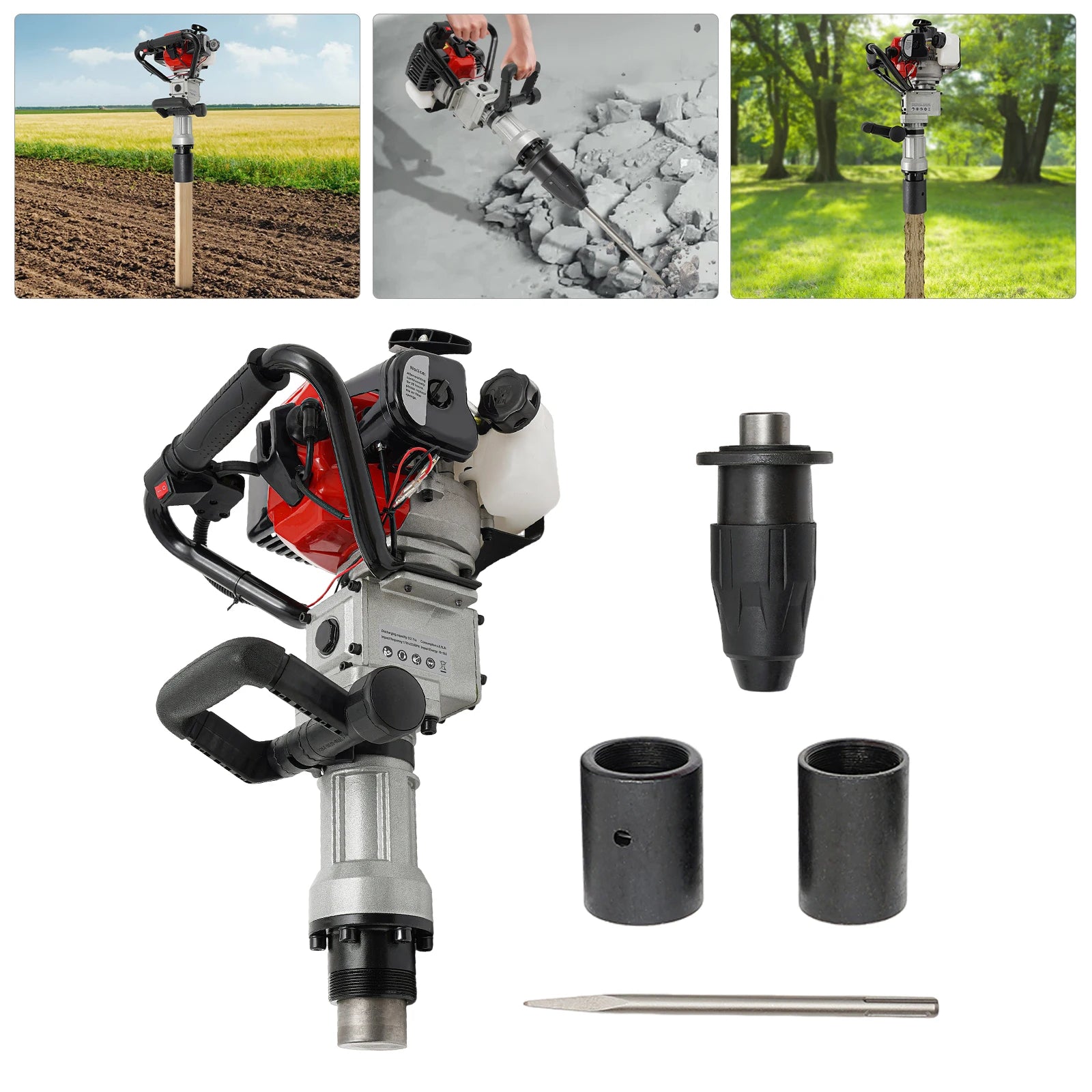

Package Included
1* Pile Driver
1*Proportioning Pot
1* English Manual
2* Sleeves
1* Conversion Head

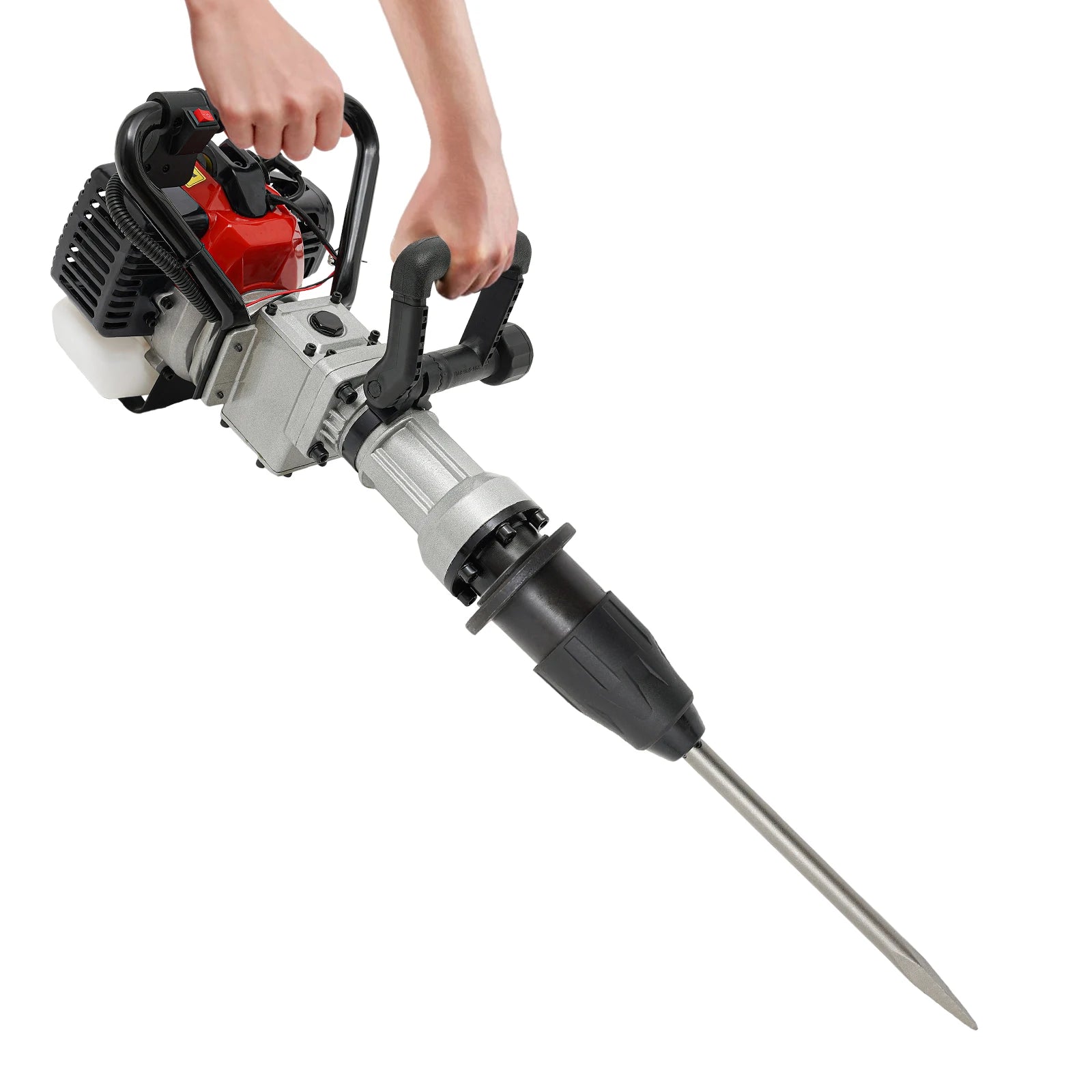

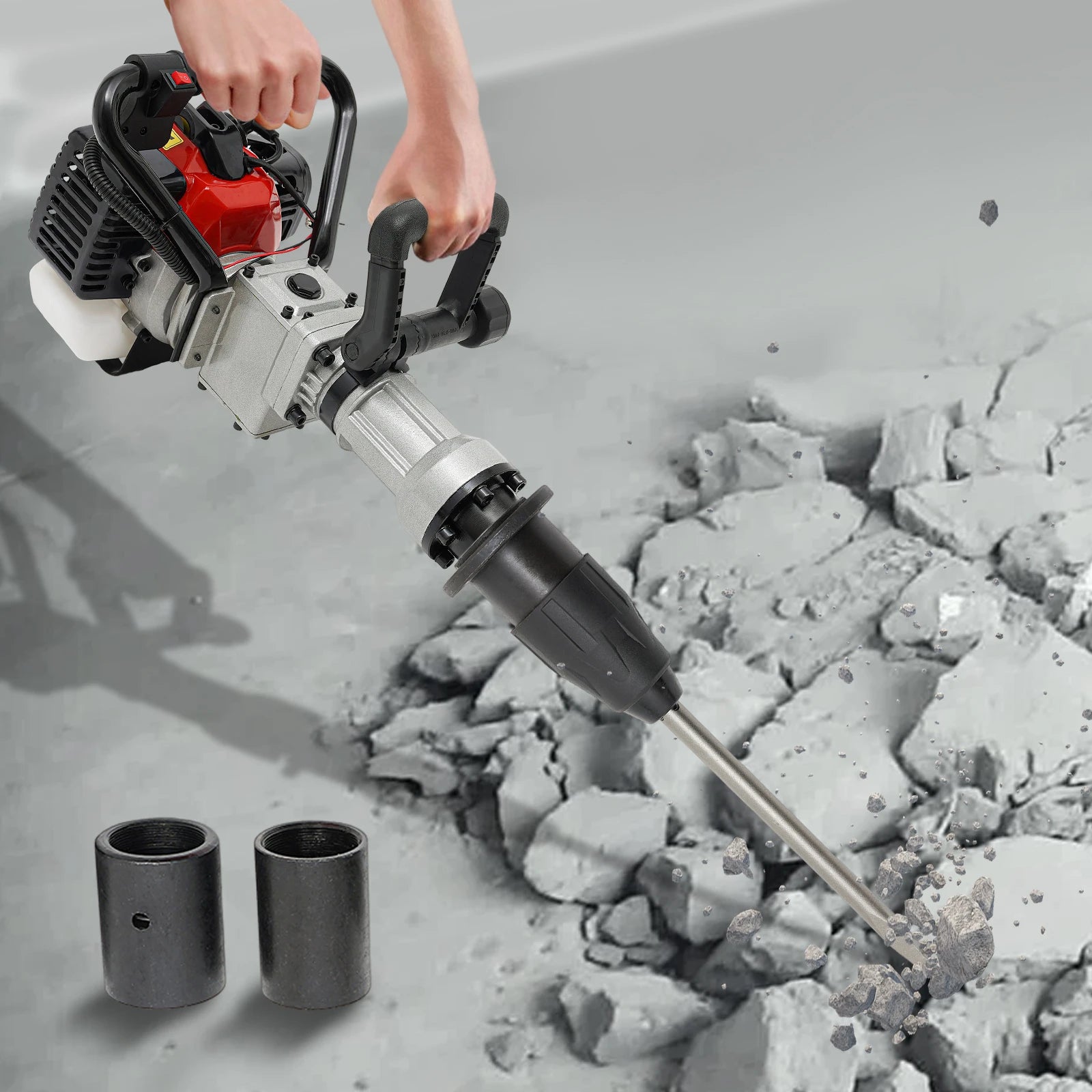

1* Chisel
1* Funnel
All Accessories for Installation
