SPECIFICATIONS

Application: Swimming Pool

Body Material: ABS

Brand Name: None

High-Concerned Chemical: None

Installation Method: Self-Contained

Is Bulbs Included: Yes

Item Type: Underwater Lights

Protection Level: IP68

Description：

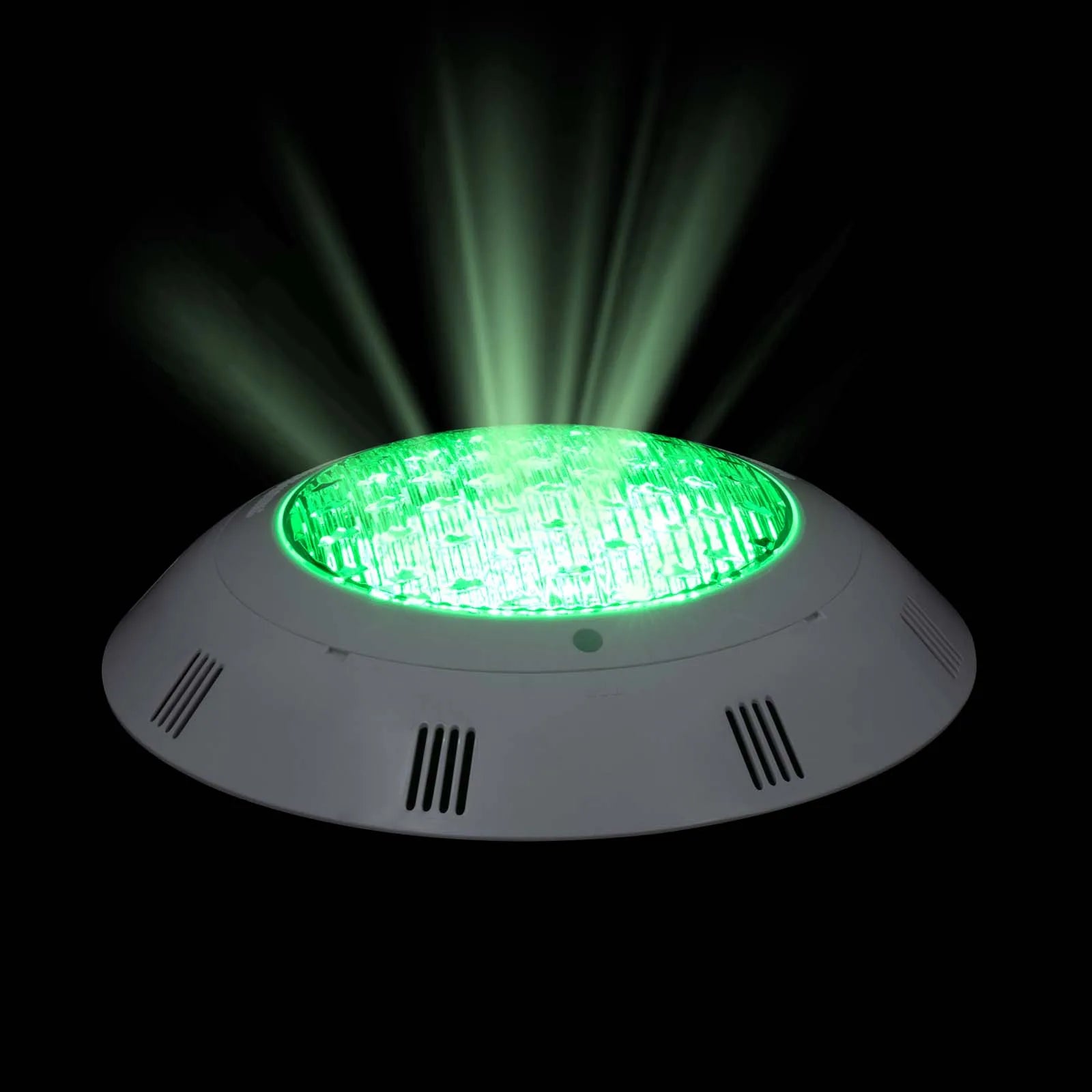

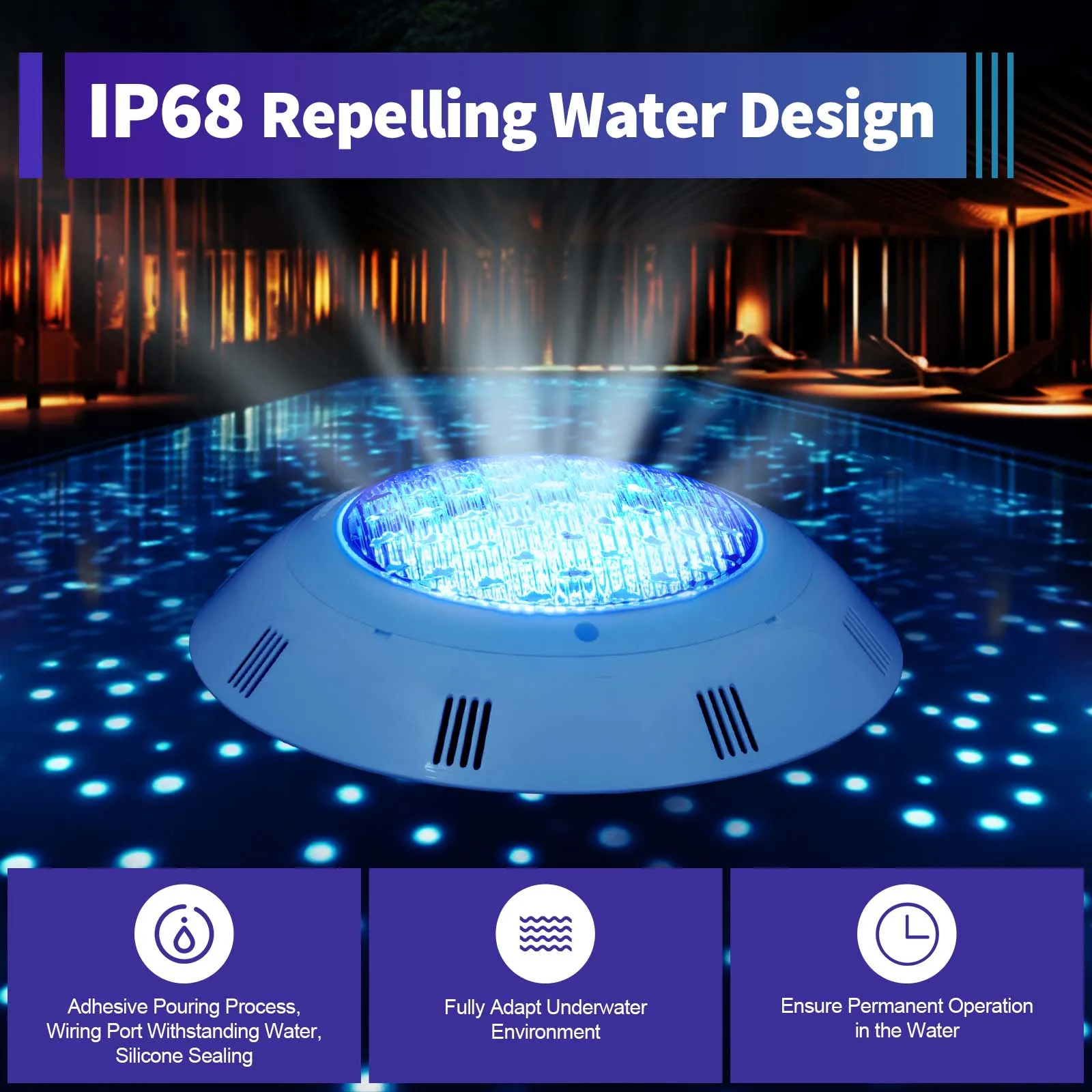

How can a swimming pool be without LED pool lights? This pool light comes in a variety of colors and lighting modes. Meanwhile, this pool light features an IP68 waterproof design with adhesive pouring process, waterproof wiring port and silicone sealing, which fully adapts underwater environment. It ensures that the light can permanently operate in water

Application：

It can be safely and widely used in swimming pools, aquariums, fountains, ponds, waterfalls, and seawater environments

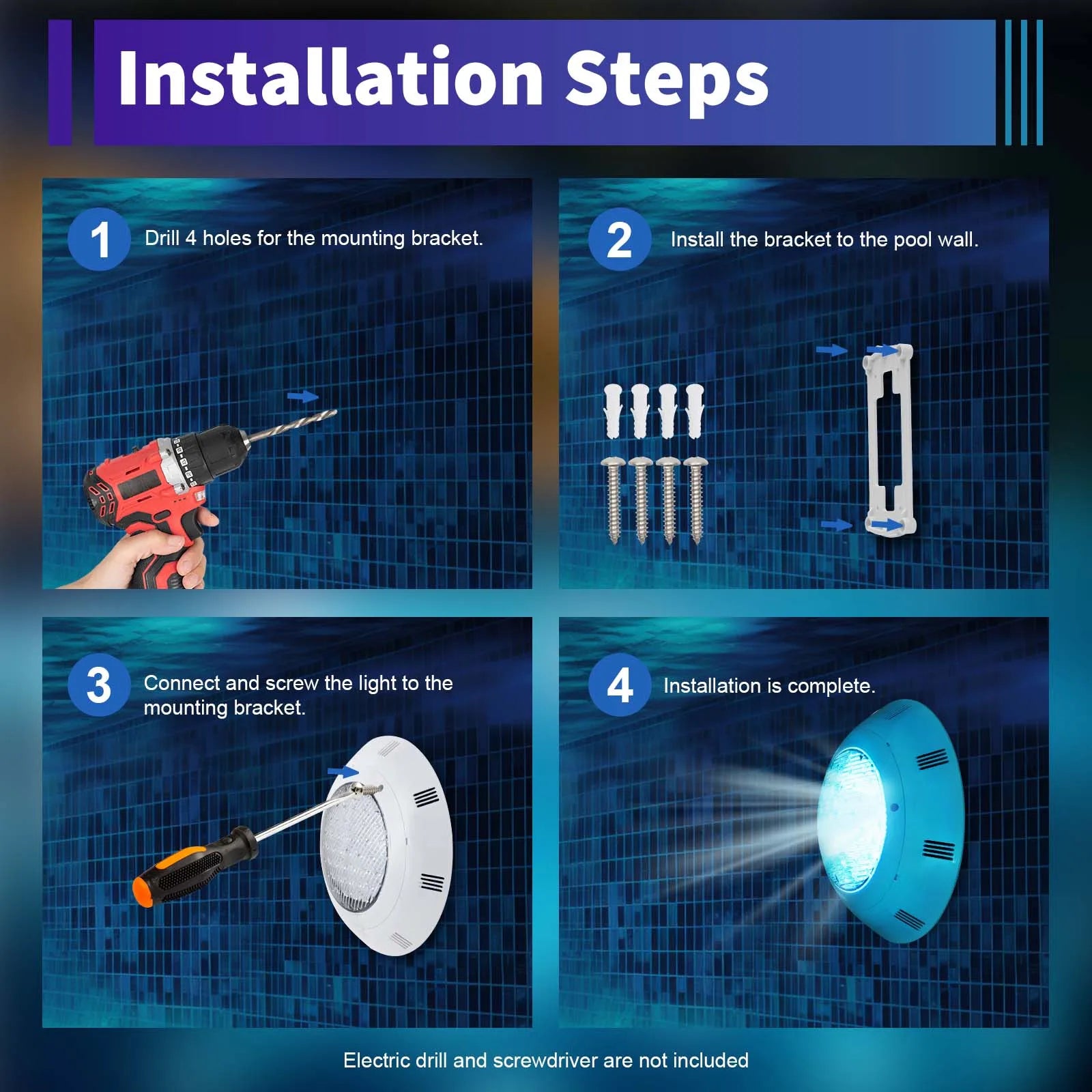

How to Install：

1.Drill 4 holes for the mounting bracket and install the bracket to the pool wall

2.Connect the buckle of the pool light to the bracket buckle and screw the light to the mounting bracket

3.The finish area must be flat and flush with the face of the mounting spacer, ensuring a snug fit between the light and the wall

4.Wrap the length of the cable up to a maximum of 1.2m/4ft long on the back of the light out of the pool for maintenance

5.Connect all wires in the junction box and feed paraffin

6.Secure the junction box cover in place and make sure all gaskets/seals fit in properly

Notes：

1.Please read the operating manual completely before use. And pay particular attention to the safety instructions

2.Please be aware that underwater lights must be low-voltage products, you need to buy an AC12V transformer to power the light. This pool light needs to be used with a professional LED transformer, not a halogen bulb transformer

3.We strongly recommend that this product be installed by a professional electrician. It can only be mounted on a flat wall and is not suitable for being installed in a pool light niche

4.The remote control effect is better when the lamp is installed 0.3 to 0.5 meters above the water surface

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering

Specification：

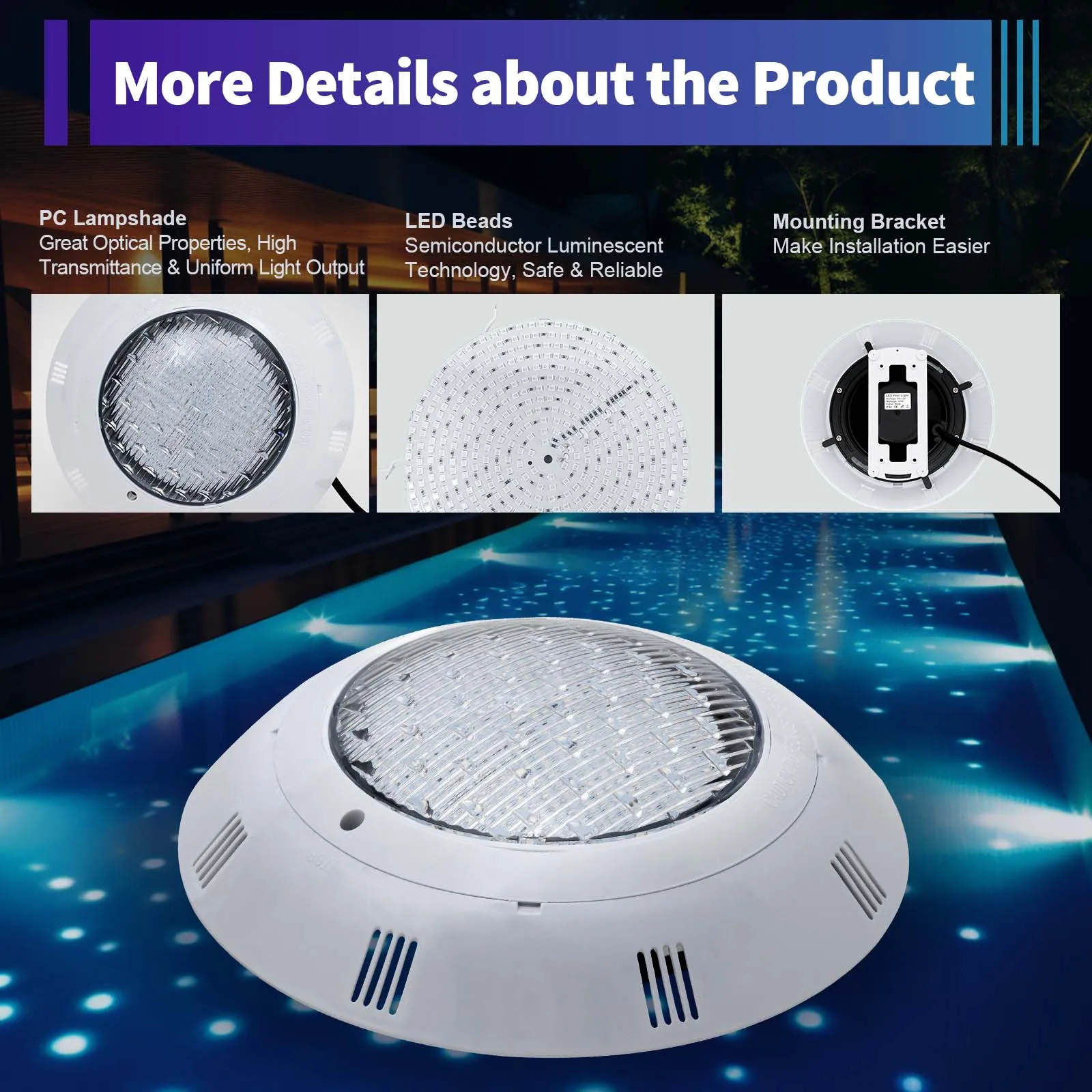

Material: ABS, PC

Product Color: White

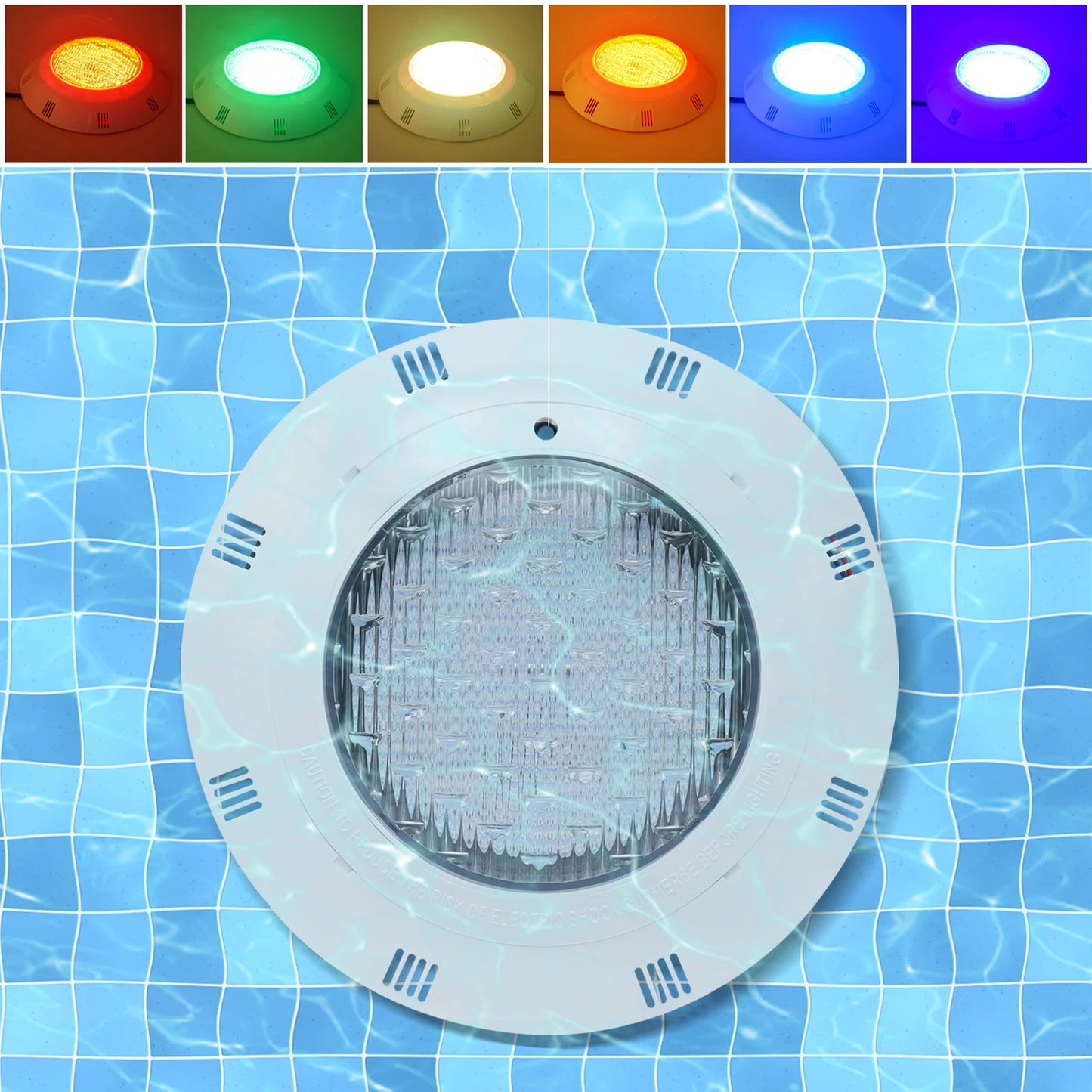

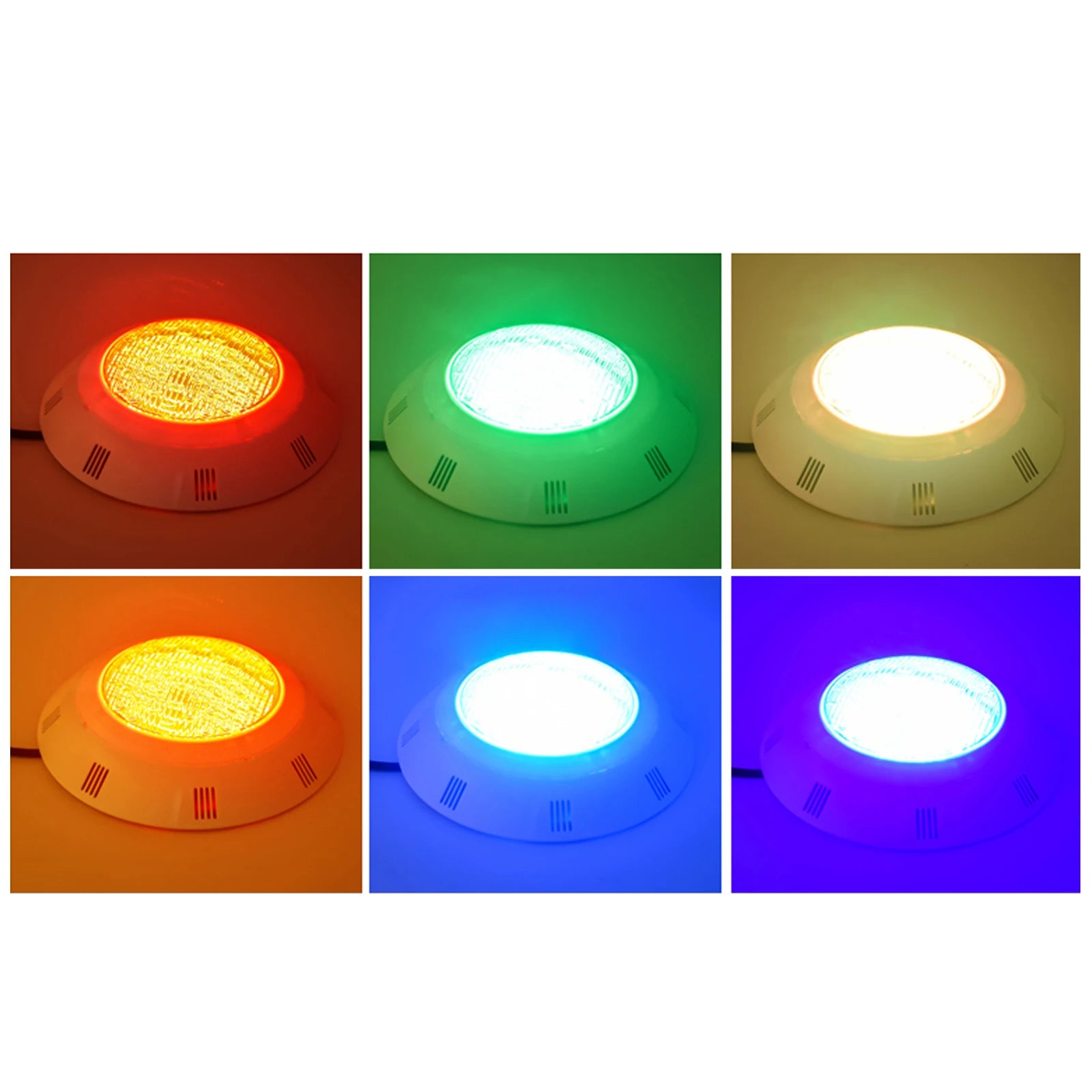

Light Color: Red, Green, Blue, Yellow, Purple, Orange, White

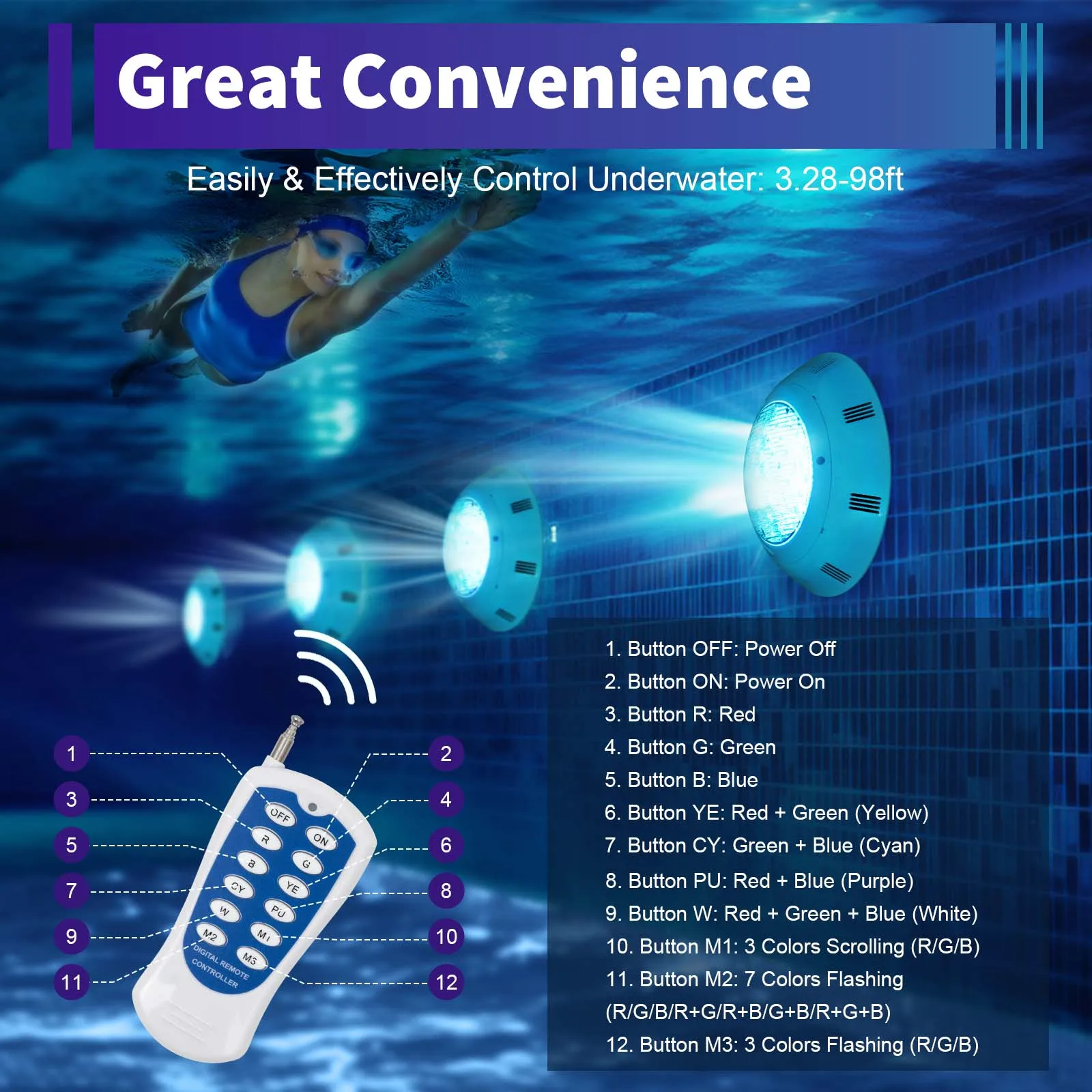

Light Mode: 11 Changing Modes

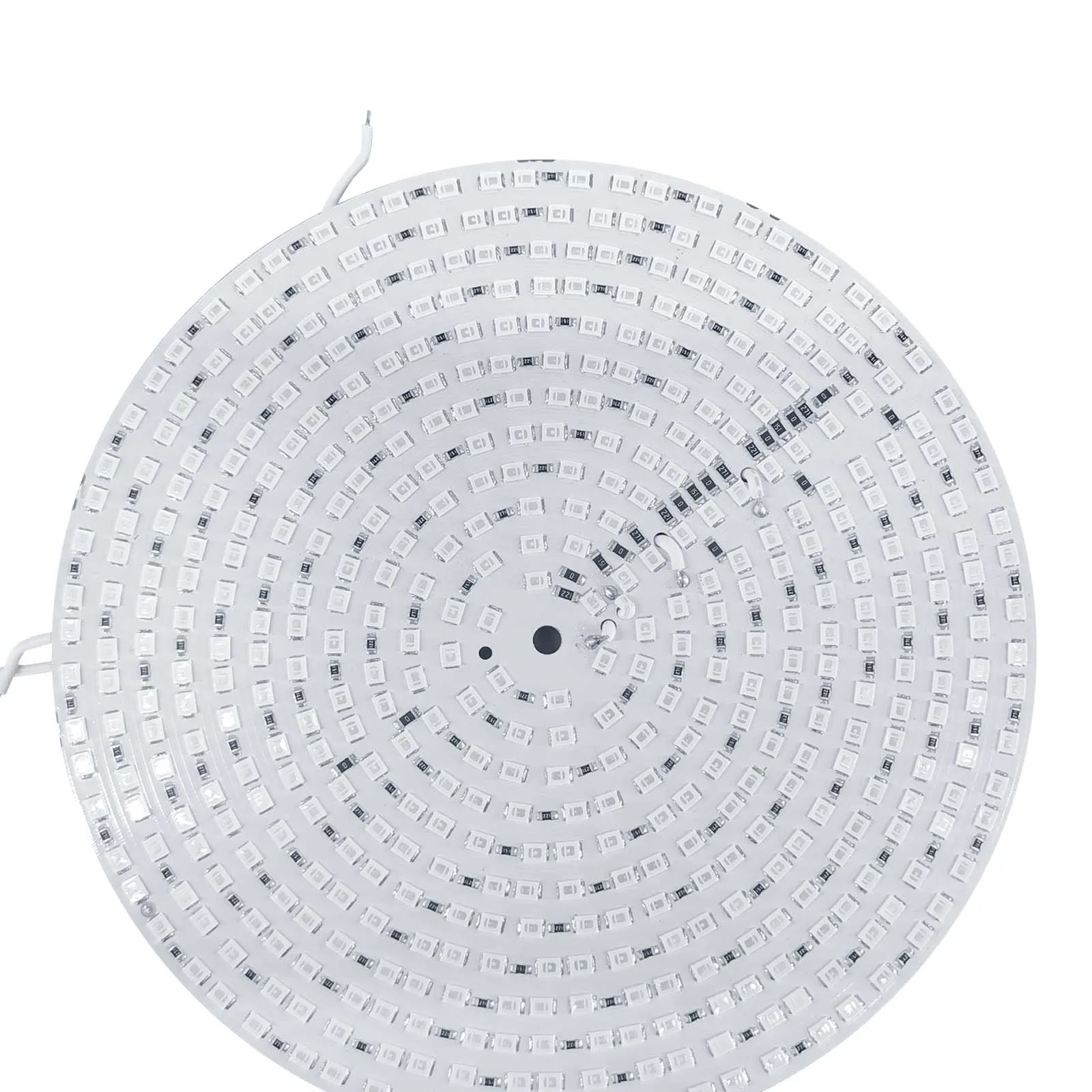

Number of LED Beads: 460 Beads

Beam Angle:120 Degrees

Controller Battery: One 23A,12V (Included)

CRI: 75

Lumen: 2500lm

Power: 45W

Voltage Input: AC12V

Power Cord Length: 1.87m/6.14ft

Working Life: 10,000H

Package Size: 31*32*10cm/12.2*12.6*3.94in

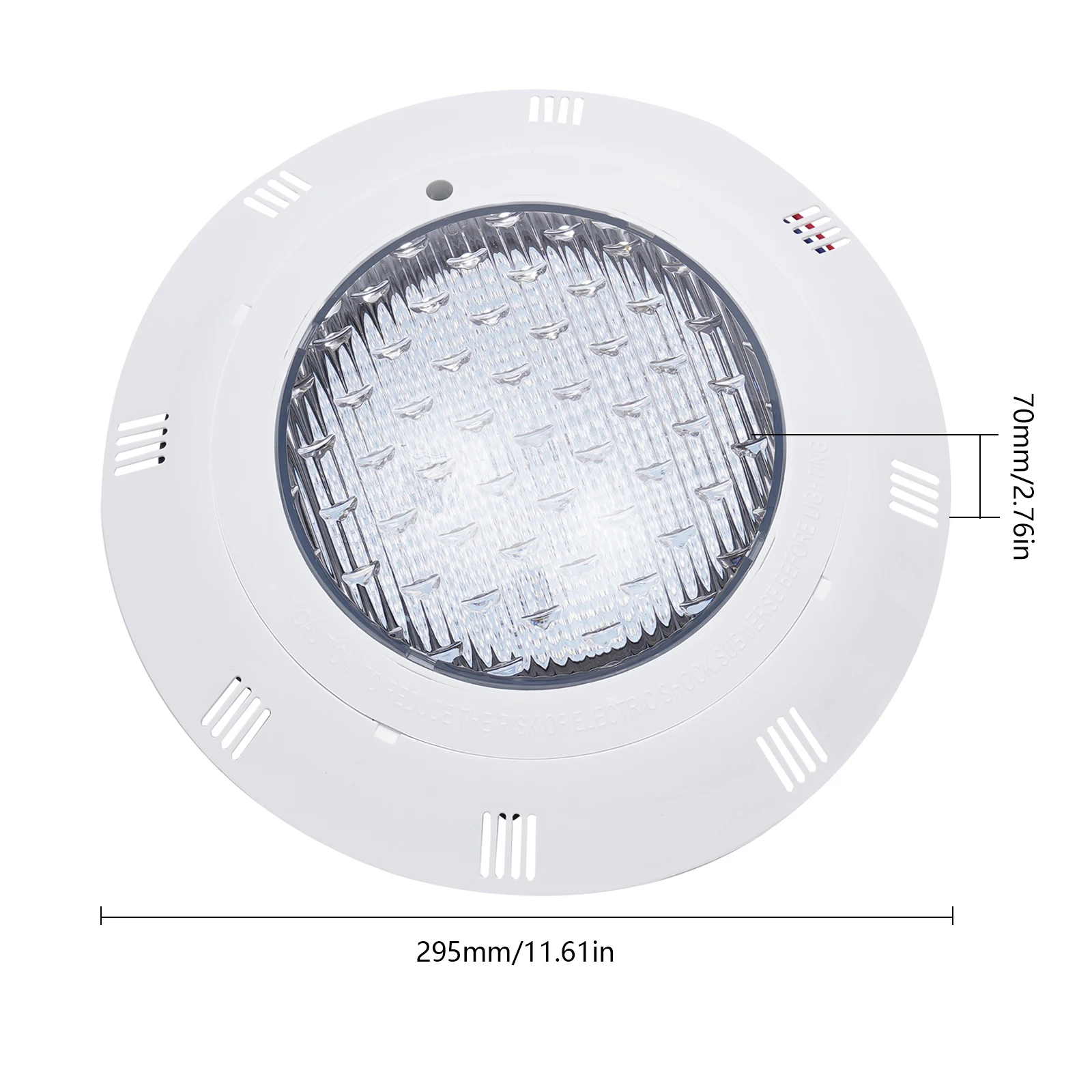

Product Size(Φ*H): 29.5*7cm/11.6*2.76in

Net Weight: 1.1kg/2.43lbs

Gross Weight: 1.5kg/3.31lbs

Package Included：

1* RGB LED Pool Light

1* Remote Control

1* English Manual

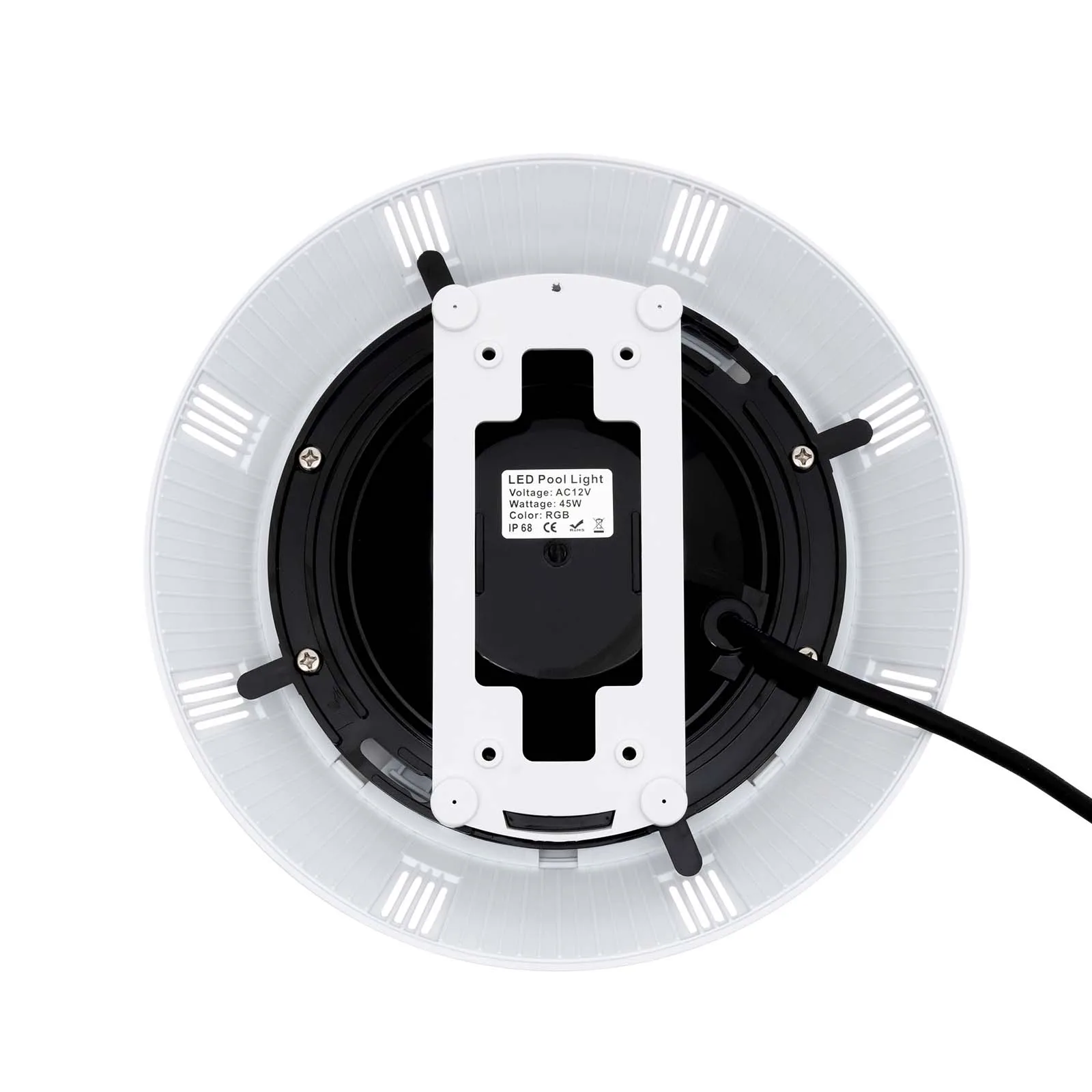

1* Mounting Bracket

1* Controller Battery

All Screws for Assembly
